おくだけセンサー設置支援ツール

Features おくだけセンサー設置支援ツール

Graphs the signal strength of Okudake sensors and BlueXtenders sub-gigabit communications.This app does not require any special permissions.[Compatible products]・ Okudake sensor (normal mode and firmware version 1.3 or higher)・ Okudake Sensor II Ex1 (firmware version 2.0 or higher)・BlueXtender (firmware version 1.0 or higher)[Compatible terminals]Android 6.0 ~ 12.0Limited to terminals that support the OTG function* We do not guarantee operation on all terminals that meet the above conditions.【how to use】[Okudake sensor series]1.
Install the app.　　2.
Connect the OTG cable and the child machine.3.
Next, connect the OTG cable and your smartphone.　　4.
Press the power button on the child device and press it again while the green LED is lit.　　5.
Confirm that the LED is lit alternately in green and orange.　　6.

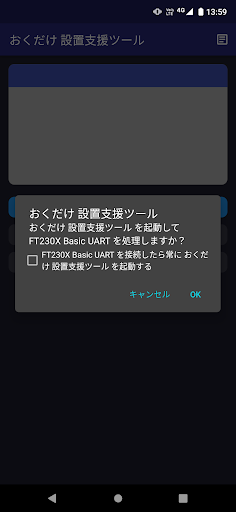

​​When a screen asking for permission to use the USB device or FT230X Basic UART is displayed, press OK.7.

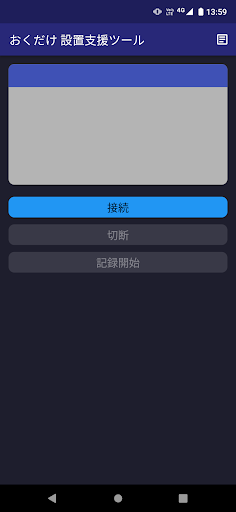

When the app starts, confirm that the parent device can communicate and press the connect button.　　8.
When the connection is completed, the information of the connected handset will be displayed.9.
When you press the start recording button, the screen will transition and graph drawing will start.[BlueXtender]1.
Install the app.2.
Connect the OTG cable and the BlueXtender Edge.3.
Next, connect the OTG cable and your smartphone.　　4.Press and hold the power button of the BlueXtender Edge and confirm that the LED lights orange or green.　　6.
​​When a screen asking for permission to use the USB device or FT230X Basic UART is displayed, press OK.7.
When the app starts, confirm that BlueXtender Gateway is ready for communication and press the connect button.8.

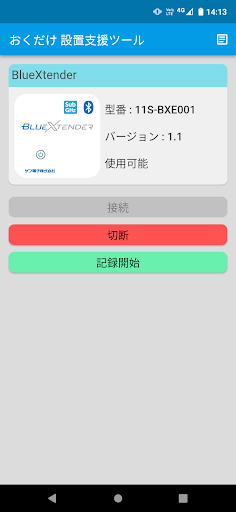

When the connection is complete, the information of the connected BlueXtender Edge will be displayed.9.
When you press the start recording button, the screen will transition and graph drawing will start.[Q&A]Q.I cant connect the device.A.
Please check whether your smartphone supports the OTG function and whether it is disabled.Q.I cannot start recording.A.Is it not displayed as unusable in the product information?
Check the compatible products, firmware versions, and operating modes.【Release notes】V2.0 - Compatible with BlueXtender, UI update, Dark mode support, Multilingual support (Japanese (Japan), English (United States))V1.5 - first release
